Esta información fue obtenida del Alex's Sailplane Directory:

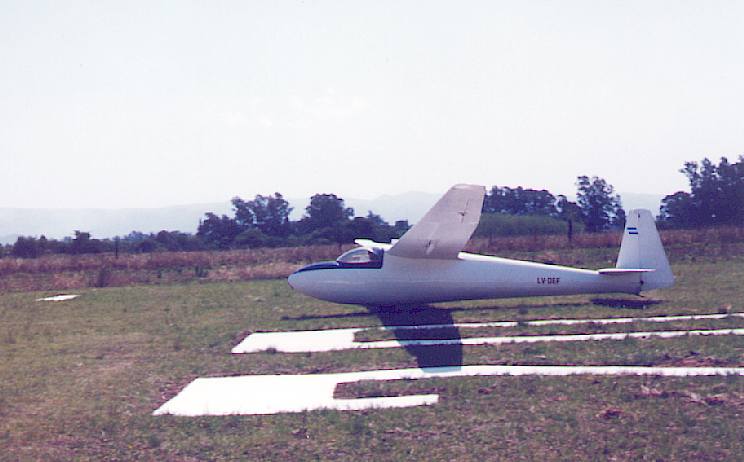

Schleicher Ka-6 CR

Specifications

  • Span 15.0 m./ 49.2 ft
  • Area 12.45 sq. m. / 134 sq.ft.
  • Aspect ratio 18.1
  • Airfoil NACA 63-618/63-615
  • Empty weight 190 kg. / 420 lb.
  • Payload 114 kg. / 250 lb.
  • Gross weight 304 kg. / 670 lb.
  • Wing loading 24.41 kg. / sq. m. / 5.0 lb. / sq. ft.
  • Structure all-wood with some fabric cover

 Performance

  • L/D max. 31 80 kph / 43 kt / 50 mph
  • Min. sink 0.61 m/s / 2.0 fps / 1.18 kt
  • 68 kph / 36 kt / 42 mph

Other

  • Country of origin Germany
  • Designer Rudolf Kaiser
  • No. of seats 1
  • No. built 1,400
  • No. in the U.S. over 50

The series began with the 14 m. Ka 6. This was followed by the Standard Class (15 m.) Ka-6b, with skid, and Ka6Br with main wheel. The Ka-6B won the OSTIV prize for the best Standard Class design at the 1958 World Championships at Leszno, Poland. The –6c version was a –6b with modified wing root. It has more of the wing covered with plywood and incorporates other minor improvements, and also comes in skid and wheeled (-6cr) models. All models have airbrakes for approach control. Some later –6CR models are designated as Ka-6CRPE’s, the PE standing for pendulum elevators (the all-moving tail used on the Ka-6E). Heinz Huth of Germany won in the Standard Class at the 1960 Koln-Butzwelerhof, Germany and 1963 Junin, Argentina World Championships in Ka-6’s. In 1963 two Ka-6’s were flown 876.0 km./ 544.3 miles by Karl Betzler and Otto Schauble from Germany to France, setting a world distance record, and in 1964, Wally Scott of the U.S. flew his Ka-6CR to a world goal of 837.7 km./ 520.55 miles. ATC
